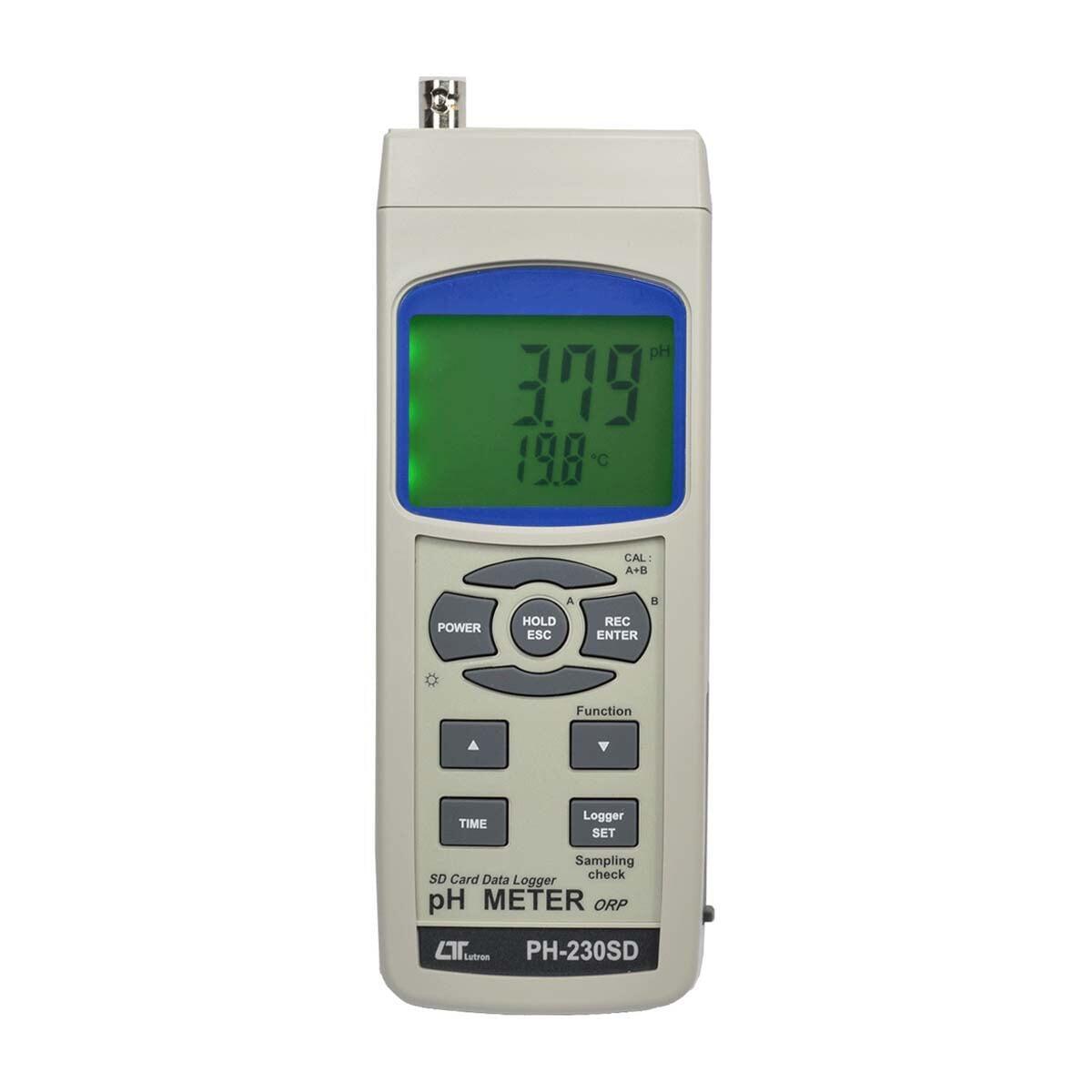

DTK PH 230SD

The DTK PH230SD is a reliable and versatile handheld meter designed for accurate measurement of pH and temperature across a wide range of water quality applications. Combining simple operation with advanced data logging capability, it provides a practical solution for professionals who require dependable pH monitoring in the field or laboratory.

Supplied with a high-quality BNC pH probe and automatic temperature compensation (ATC) probe, the PH230SD delivers accurate results by automatically adjusting measurements to changing temperature conditions. An optional ORP probe can also be added, allowing the instrument to be expanded for additional oxidation-reduction potential measurements.


The easy-to-use function button allows users to quickly switch between measurement parameters, while the large LCD display provides clear visibility of results during testing. Built-in functions including automatic pH calibration, hold, min/max readings and auto power off help make routine measurements simple and efficient.


The PH230SD also features real-time SD card data logging, allowing users to record, store and transfer measurement results without the need for additional software. With RS232 computer connectivity, a fold-out stand and tripod connection, it is designed for flexible use across a range of professional applications.


Each meter is supplied with 6 x AA batteries, a pH probe, ATC temperature probe and a certificate of conformity valid for 12 months. Calibration services are available through DTK Water to support ongoing measurement accuracy.

Key Features

  • Measures pH and temperature
  • Optional ORP measurement capability
  • Automatic temperature compensation with ATC probe
  • Automatic pH calibration to pH 4, 7 and 10 standards
  • Real-time SD card data logging
  • RS232 computer connectivity
  • Large LCD display
  • Auto power off, hold and min/max functions
  • Fold-out easel stand and tripod connection
  • Supplied with pH and ATC probes

Applications

  • Boiler Water
  • Cooling Water
  • Drinking Water Treatment
  • Pool Water Control
  • Wastewater Treatment
  • Industrial Water Monitoring

Technical Data

  • Display: Large backlit LCD
  • Data Logging: SD card support
  • Interfaces: RS232
  • Power Supply: 6 x AA batteries
  • Dimensions: 177 x 68 x 45 mm
  • Weight: 489 g
  • Compliance: Certificate of conformity supplied
pH Probe
  • Measuring Range: 0 – 14 pH
  • Resolution: 0.01 pH
  • Accuracy: ±(0.02 pH + 2d)
ATC Temperature Probe
  • Temperature Range: 0 – 60 °C / 32 – 140 °F
  • Resolution: 0.1 °C / °F
  • Accuracy: ±0.8 °C / ±1.5 °F
Optional ORP Probe
  • Measuring Range: 0 - 1999 mV
  • Resolution: 1 mV
  • Accuracy: ±(0.5% + 2d)
   Order Code   Description
DTK230
DTK PH 230SD
EDT037BNC pH probe
DTK2017P/TReplacement ATC probe
DTK2017P/OORP Probe
 840057RS232 Cable
 850080Intelligent Software
