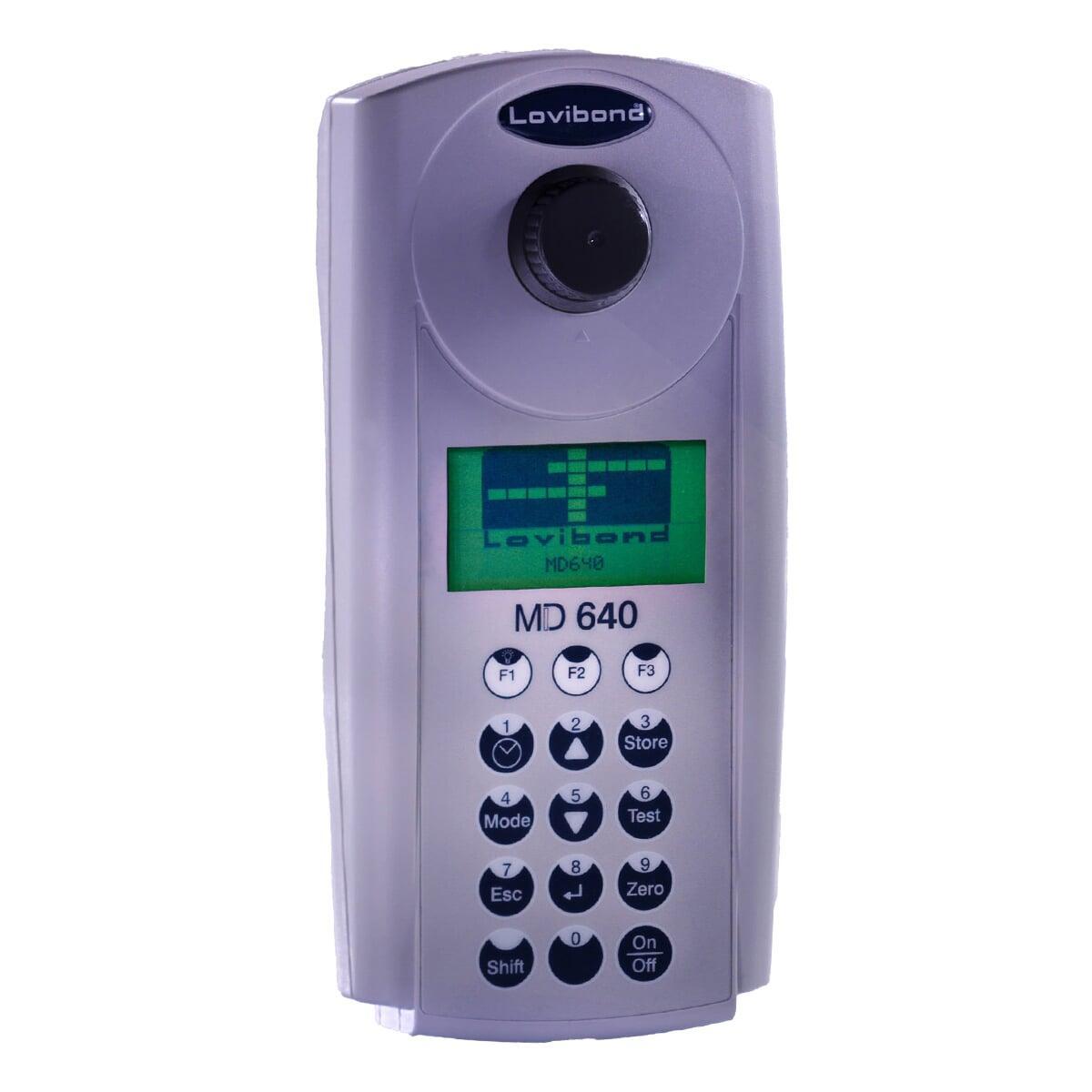

MD640 Photometer
The Lovibond® MD 640 is a high-performance multiparameter photometer developed for professional boiler, cooling and industrial water analysis. Combining comprehensive colourimetric testing with dedicated PTSA and Fluorescein tracer measurement, it provides water treatment professionals with a versatile solution for routine testing using a single portable instrument.
With more than 120 pre-programmed methods, the MD 640 supports extensive water quality analysis alongside specialist monitoring of fluorescent tracers used in water treatment programmes.
A six-wavelength optical system, intuitive menu-driven operation, Bluetooth® connectivity and storage for up to 1,000 results provide the measurement performance and data management capabilities required for testing in the field or laboratory.
Designed for Boiler & Cooling Water Analysis
The MD 640 is specifically suited to professionals responsible for monitoring boiler water, cooling towers and closed water systems.
In addition to a comprehensive range of colourimetric water testing methods, the instrument provides dedicated measurement of PTSA (p-Toluenesulfonic Acid) and Fluorescein, allowing fluorescent tracers to be monitored alongside other important water quality parameters.
Bringing these measurements together in one portable instrument simplifies routine testing and provides greater flexibility when managing industrial water treatment programmes.
Comprehensive Multiparameter Testing
More than 120 pre-programmed methods provide testing capability across a broad range of water quality parameters.
Methods can be selected by name through the menu-driven interface, while frequently used tests can be added to a personalised favourites menu for faster access.
On-screen information identifies the appropriate reagents, sample cells and reporting units, helping users follow the correct procedure for each selected method.
High-Performance Optical Measurement
The MD 640 uses a six-wavelength optical system with precision LEDs and interference filters to provide accurate and reproducible measurements across its extensive range of test methods.
The One-Time-Zero (OTZ) function reduces repeated zeroing steps when carrying out compatible measurements on the same sample, helping make routine testing more efficient.
Flexible Data Management
The MD 640 can store up to 1,000 results, including location ID, date and time information, providing a detailed record of testing activity.
Built-in Bluetooth® connectivity allows results to be transferred wirelessly to the AquaLX® App for review and data management.
Additional options include:
- CSV data export for reporting and analysis
- Wireless transfer to a Windows PC using optional software
- Storage of location ID, date and time information
- Up to 1,000 stored measurement results
Adaptable to Your Testing Requirements
For applications requiring additional flexibility, users can create and store up to 35 custom calibration curves for proprietary or site-specific testing procedures.
Firmware updates also allow newly developed methods and instrument enhancements to be added, helping the MD 640 adapt as testing requirements evolve.
Applications
- Boiler water
- Cooling water systems
- Cooling towers
- Closed water systems
- Industrial process water
- Disinfection control
- Drinking water treatment
- Food and beverage processing
- Wastewater treatment
- Environmental water monitoring
Key Features
- Designed for boiler, cooling and industrial water analysis
- Dedicated PTSA measurement
- Dedicated Fluorescein measurement
- More than 120 pre-programmed methods
- Six-wavelength optical system
- Precision LEDs and interference filters
- Menu-driven method selection
- Personalised favourites menu
- One-Time-Zero functionality
- Bluetooth® connectivity
- AquaLX® App compatibility
- Storage for up to 1,000 results
- Location ID, date and time recording
- Supports tablet, powder and liquid reagents
- Up to 35 user-defined calibration curves
- CSV data export
- Firmware updates for additional methods and enhancements
| Order Code | Parameter |
|---|---|
| 214140 | Pre-programed with over 120 water testing parameters and ranges |
