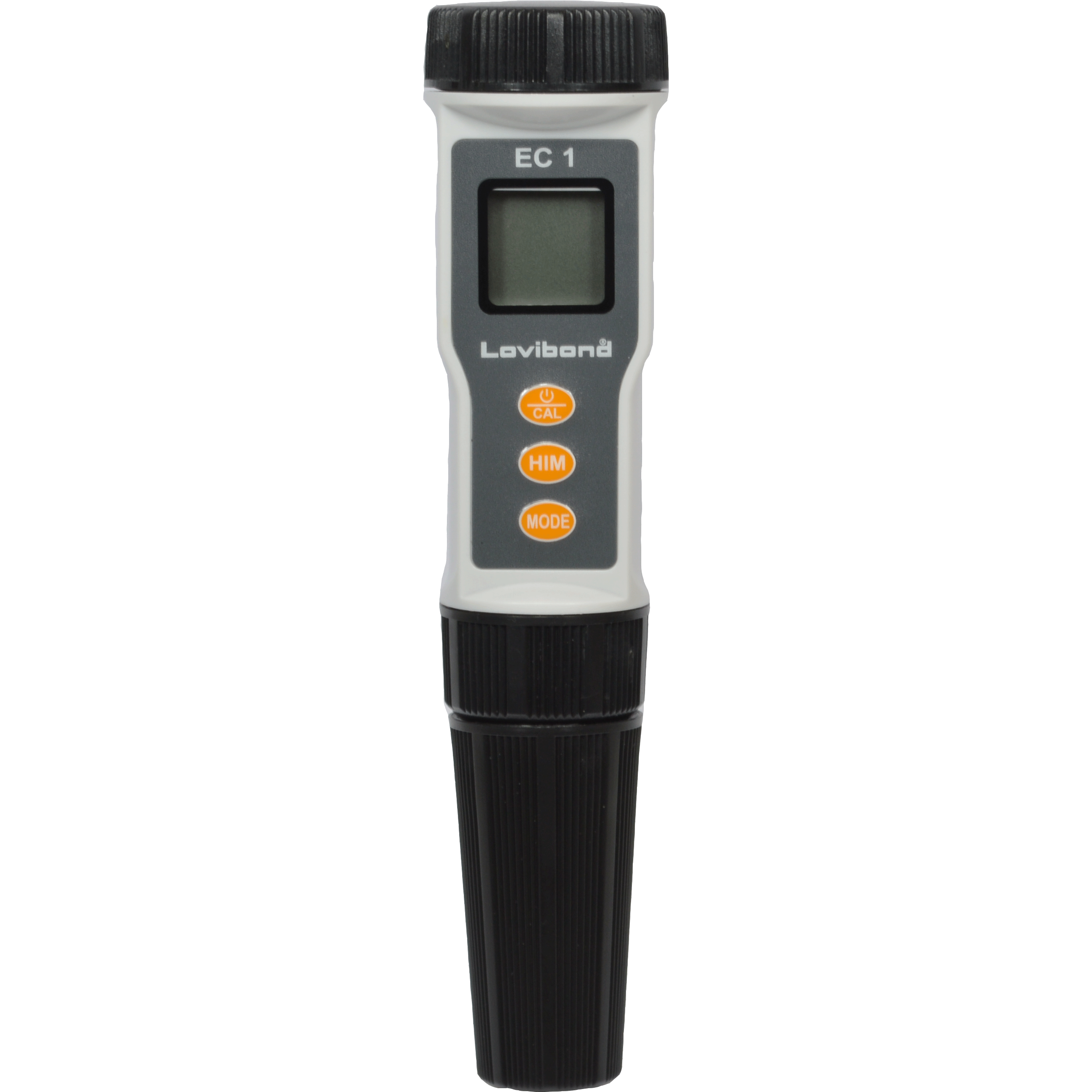

EC1

The EC1 Conductivity, TDS & Salinity Meter is a lightweight, portable instrument designed to provide fast and accurate measurements for routine water quality monitoring. Capable of measuring conductivity, total dissolved solids (TDS), salinity and temperature, the EC1 is an ideal solution for engineers, water treatment professionals and technicians carrying out testing in the field or laboratory.

Designed for everyday use, the EC1 combines reliable performance with a simple, user-friendly interface, allowing you to monitor multiple water quality parameters using a single handheld instrument.

Built for Field Testing

Whether you're monitoring cooling systems, process water, potable water or environmental samples, the EC1 has been designed to withstand the demands of routine field work. Its compact, waterproof design floats if accidentally dropped into water, providing added confidence when working around tanks, reservoirs and open water systems.


The clear display provides quick access to conductivity, TDS, salinity and temperature readings, while the data hold function makes it easy to record results during testing. Automatic shut-off helps maximise battery life, ensuring the instrument is always ready when needed.

Accurate Multi-Parameter Measurement

By combining four essential water quality measurements into one portable device, the EC1 simplifies routine testing and reduces the need to carry multiple instruments. High measurement accuracy and automatic temperature compensation help deliver reliable, repeatable results across a wide range of applications.


Weighing just 74 g, the EC1 is comfortable to carry throughout the working day, making it an ideal choice for both routine monitoring and on-site troubleshooting.

Key Features

  • Measures Conductivity, TDS, Salinity and Temperature
  • Wide conductivity measuring range from 0 to 20.00 mS
  • TDS measuring range up to 13.00 ppt
  • Salinity measurement up to 12.00 ppt
  • Temperature range from 0 to 90 °C
  • Waterproof design that floats in water
  • Automatic Temperature Compensation (ATC)
  • Data hold function for convenient result recording
  • Automatic power-off to extend battery life
  • Lightweight handheld design weighing just 74 g

Applications

  • Cooling Water
  • Boiler Water
  • Drinking Water Treatment
  • Wastewater Treatment
  • Process Water
  • Environmental Water Monitoring
  • Pool Water Control
  • Industrial Water Systems
  • Laboratory Testing

Technical Data

  • Measurement Parameters:
    • pH: -2.00 to 16.00
    • Temperature: 0 – 90 °C
    • Conductivity: 0 – 2000 µS / 2.00 – 20.00 mS
    • TDS: 0 – 1300 ppm / 1.30 – 13.00 ppt
    • Salinity: 0 – 1000 ppm / 1.00 – 12.00 ppt
    • Temperature: 0 – 90 °C
  • Accuracy:
    • Conductivity: 1 µS / 0.01 mS
    • TDS: 1 ppm / 0.01 ppt
    • Salinity: 1 ppm / 0.01 ppt
    • Temperature: ±0.2 °C
  • ​Resolution:
    • Conductivity: 1 µS / 0.01 mS
    • TDS: 1 ppm / 0.01 ppt
    • Salinity: 1 ppm / 0.01 ppt
    • Temperature: 0.1 °C
  • Conductivity, TDS, Salinity and Temperature measurement
  • Automatic Temperature Compensation (ATC)
  • Data hold
  • Automatic power-off
  • Floating waterproof design
  • Dimensions: 40 x 40 x 170 mm
  • Weight: 74 g
   Order Code   Description
pH1pH/Temperature Meter
pH1PReplacement pH1 probe
 pH1R pH meter with redox probe reading mV
 RE1P Replacement redox probe
